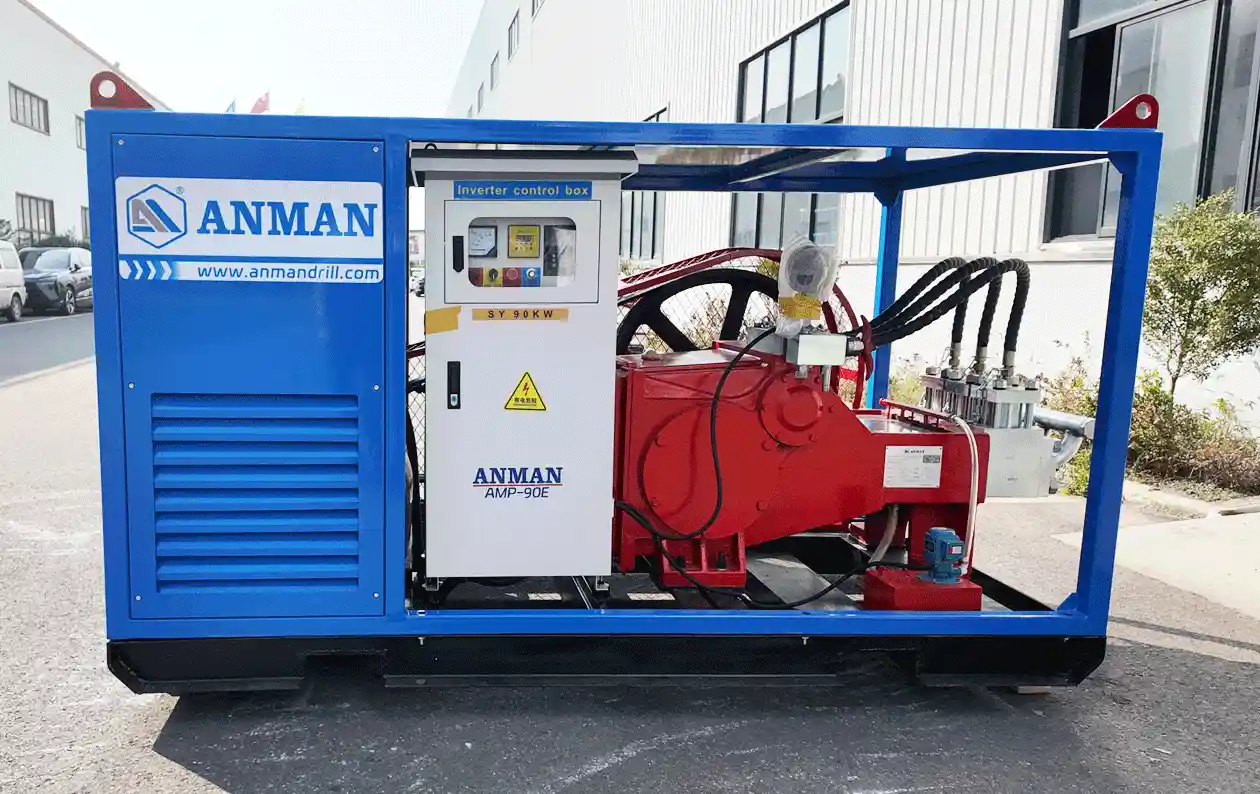

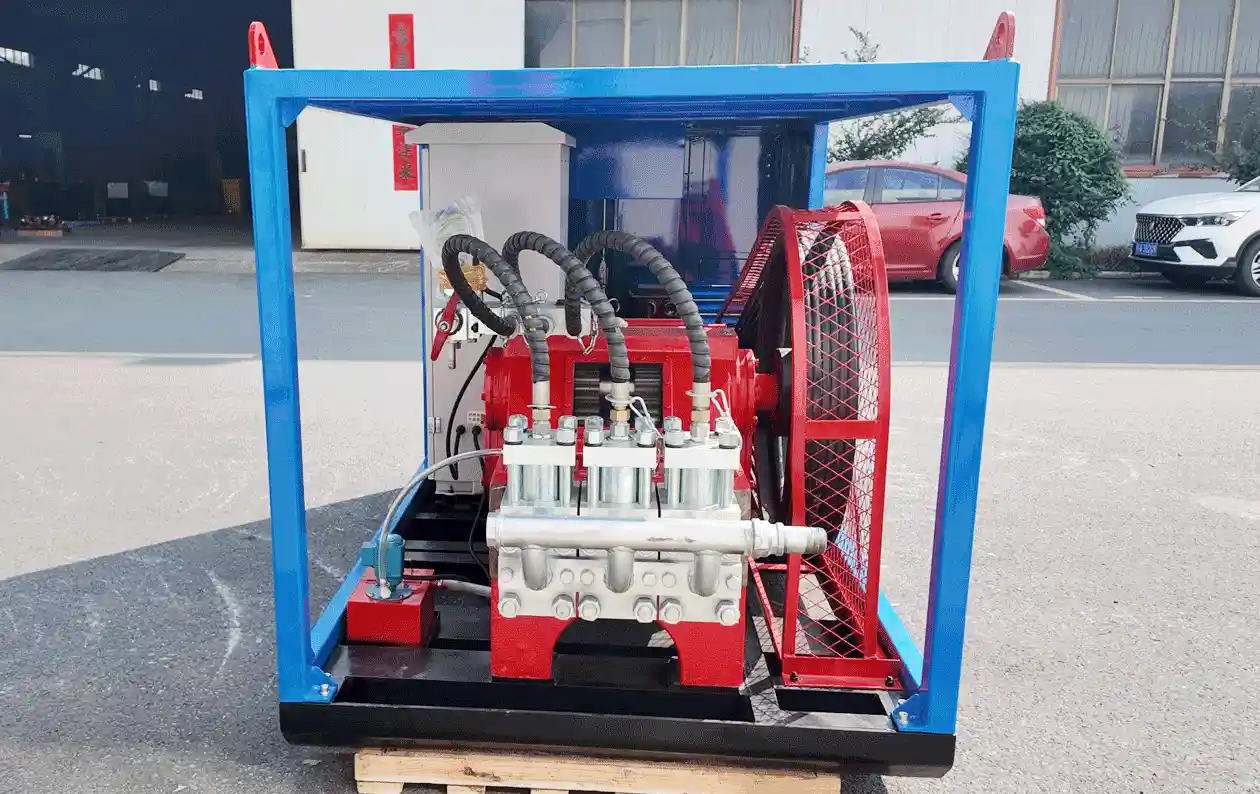

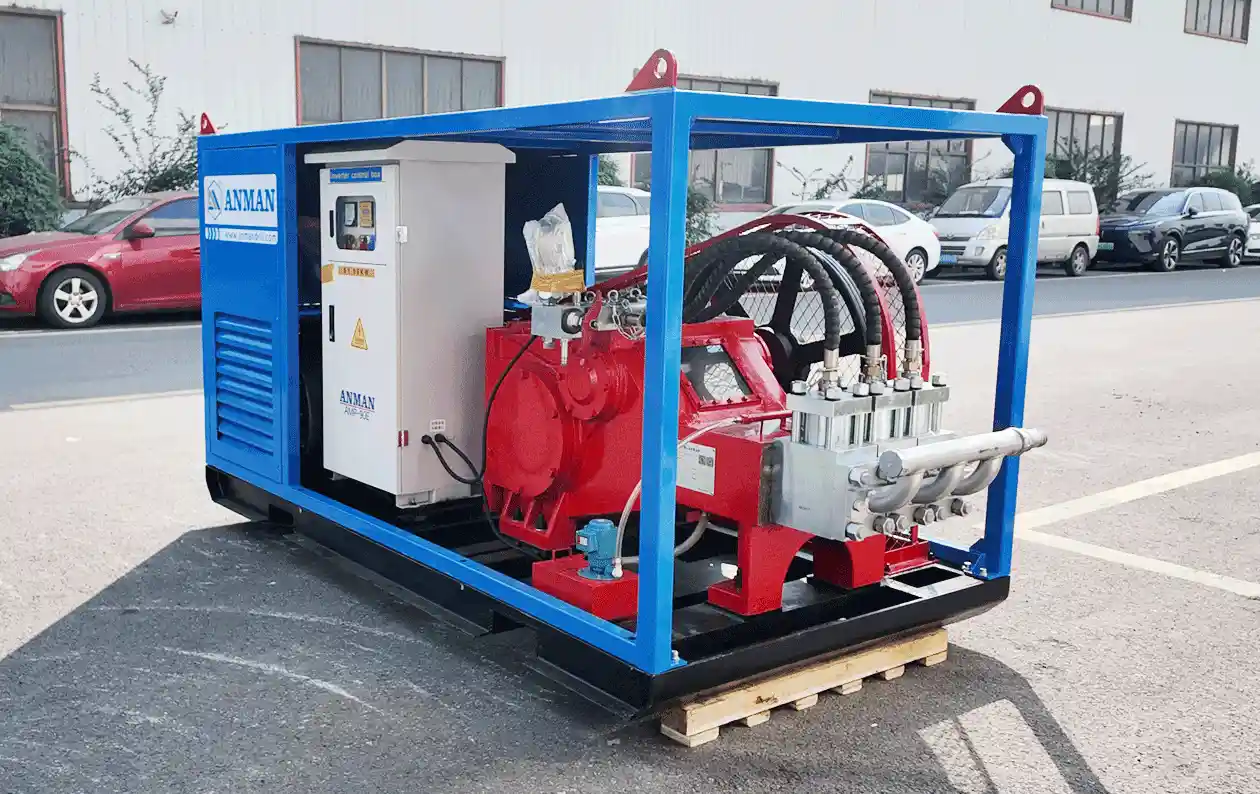

AMP-90E
The AMP-90E is a compact, box-type high-pressure grouting pump designed for a wide range of applications, from low-pressure grouting to high-pressure jet grouting. With overall dimensions of 3000 × 1710 × 2000 mm, its compact design allows for convenient setup and efficient use of space on construction sites.
{Maximum Pressure ^560kg}
{Container Weight^120r/min}
{Output Power^4500N·m}
{Maximum Pressure^560kg}
{Container Weight^120r/min}
{Output Power^4500N·m}
{Maximum Pressure^560kg}
Maximum Pressure：560kg
Container Weight：120r/min
Output Power：4500N·m
Maximum Pressure：560kg
APPLICATION SCENARIOS
3040
PRODUCT OVERVIEW

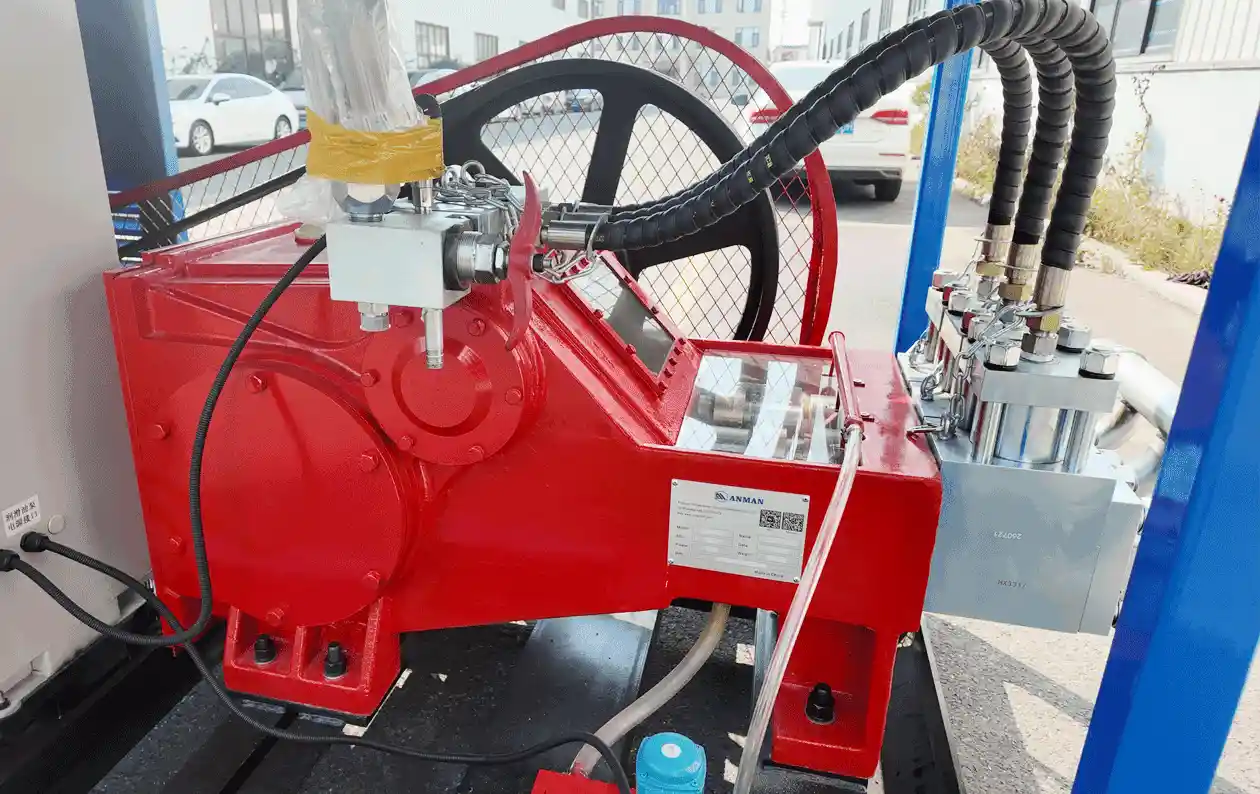

The product features a low-stroke-rate, long-stroke design, with optimized power-end and fluid-end structures for handling particle-laden media. This helps extend seal service life and reduce on-site maintenance frequency. The forced-feed lubrication system, powered by an oil gear pump, ensures reliable operation under prolonged heavy-duty working conditions. An optional 7-inch PLC control panel provides real-time display, storage, printing, and remote transmission of operating pressure, flow rate, and slurry density data, meeting modern construction requirements for data management and remote monitoring.
{Compact box-type structure with overall dimensions of 3000 × 1710 × 2000 mm}
{Optimized power-end and fluid-end structures for handling particle-laden media and extending seal service life}
{Low-stroke-rate, long-stroke design to reduce on-site maintenance frequency}
{Forced-feed lubrication system powered by an oil gear pump for reliable operation under prolonged heavy-duty conditions}
{Optional 7-inch PLC control panel for real-time display, storage, printing, and remote transmission of pressure, flow rate, and slurry density data}
{Optimized power-end and fluid-end structures for handling particle-laden media and extending seal service life}
{Low-stroke-rate, long-stroke design to reduce on-site maintenance frequency}
{Forced-feed lubrication system powered by an oil gear pump for reliable operation under prolonged heavy-duty conditions}
{Optional 7-inch PLC control panel for real-time display, storage, printing, and remote transmission of pressure, flow rate, and slurry density data}
- •Compact box-type structure with overall dimensions of 3000 × 1710 × 2000 mm
- •Optimized power-end and fluid-end structures for handling particle-laden media and extending seal service life
- •Low-stroke-rate, long-stroke design to reduce on-site maintenance frequency
- •Forced-feed lubrication system powered by an oil gear pump for reliable operation under prolonged heavy-duty conditions
- •Optional 7-inch PLC control panel for real-time display, storage, printing, and remote transmission of pressure, flow rate, and slurry density data
TECHNICAL SPECS
{Parameters,[
Container Dimensions (L*W*H)^3000mm*1710mm*2000mm,
Container Weight^3000 kg,
Input Power^90kW,
Maximum Pressure^35 MPa，
Maximum Flow Rate^129 L/min,
Piston Diameter^2.95‘’/75 mm，
Stroke^80 mm,
Maximum Stroke Rate^200 spm,
Suction Diameter^2.‘’/50.8mm,
Discharge Diameter^M30 mm]}
Container Dimensions (L*W*H)^3000mm*1710mm*2000mm,
Container Weight^3000 kg,
Input Power^90kW,
Maximum Pressure^35 MPa，
Maximum Flow Rate^129 L/min,
Piston Diameter^2.95‘’/75 mm，
Stroke^80 mm,
Maximum Stroke Rate^200 spm,
Suction Diameter^2.‘’/50.8mm,
Discharge Diameter^M30 mm]}
| Container Dimensions (L*W*H) | 3000mm*1710mm*2000mm |
| Container Weight | 3000 kg |
| Input Power | 90kW |
| Maximum Pressure | 35 MPa |
| Maximum Flow Rate | 129 L/min |
| Piston Diameter | 2.95‘’/75 mm |
| Stroke | 80 mm |
| Maximum Stroke Rate | 200 spm |
| Suction Diameter | 2.‘’/50.8mm |
| Discharge Diameter | M30 mm |
