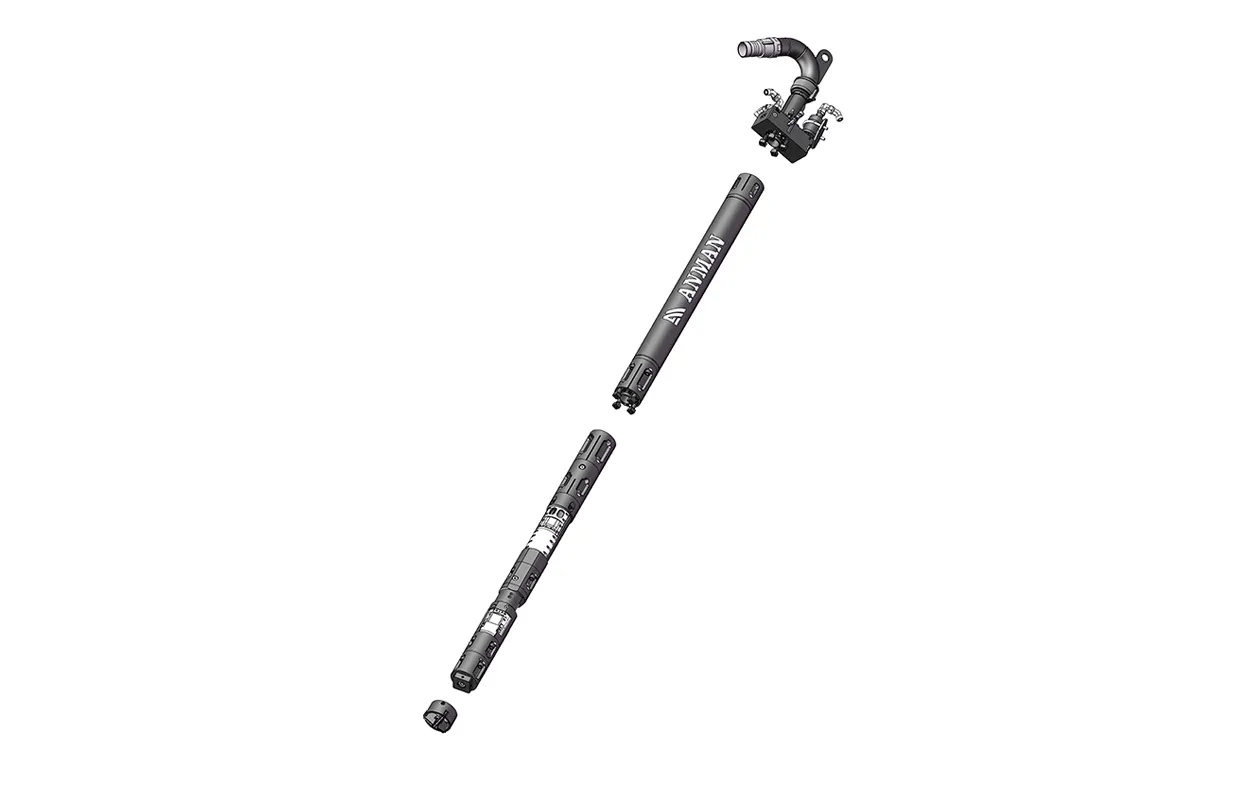

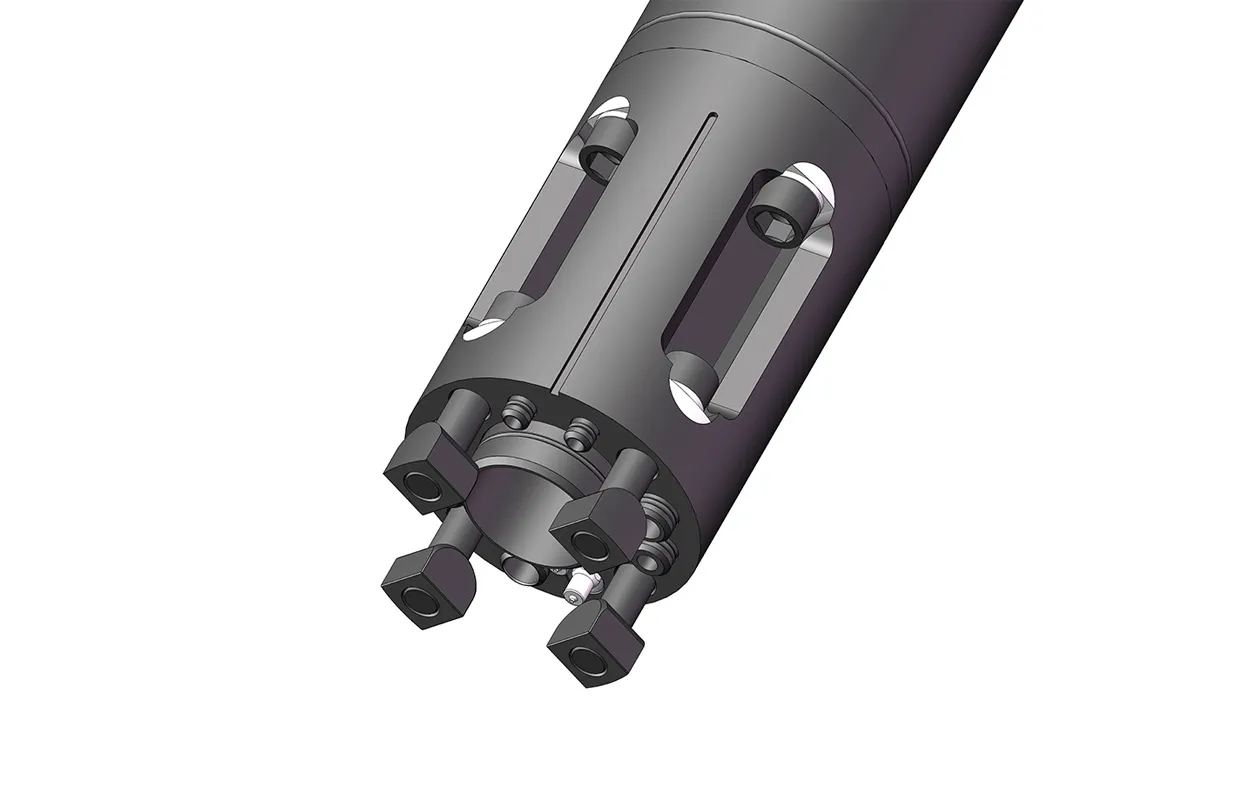

MJS Rod

Name: MJS Rod
Brand: Anman Drill
Availability: InStock

MJS drilling tools enable all-directional vertical, horizontal and inclined construction. Featuring low environmental impact, great reinforcement depth and reliable performance, they adapt to various soft soils and complex sites, achieving efficient foundation reinforcement and waterproof curtain reinforcement with high precision.

{Torque^≤3000N·M}
{Depth^≤50m}
{Weight^87kg}

Torque：≤3000N·M

Depth：≤50m

Weight：87kg

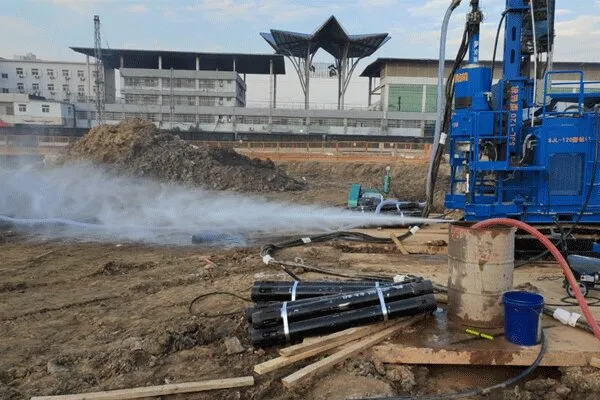

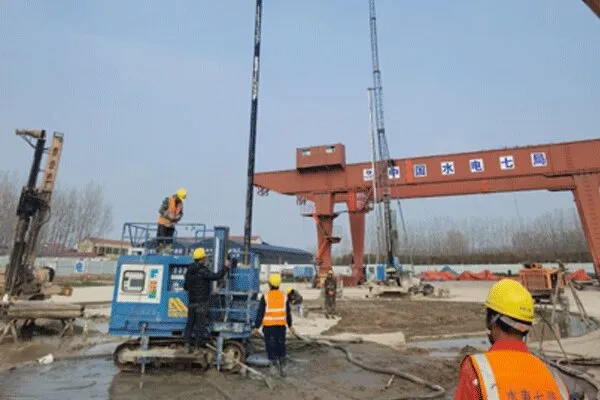

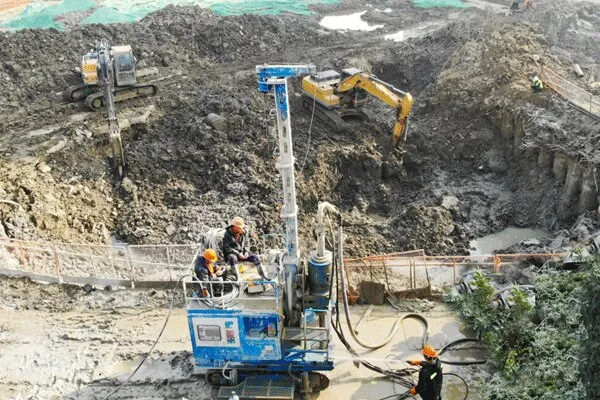

APPLICATION SCENARIOS

3040

BECOME A DISTRIBUTOR +8613921112897

PRODUCT OVERVIEW TECHNICAL SPECS RELATED PRODUCTS PROJECT CASES SERVICE POLICIES USER REVIEWS

PRODUCT OVERVIEW

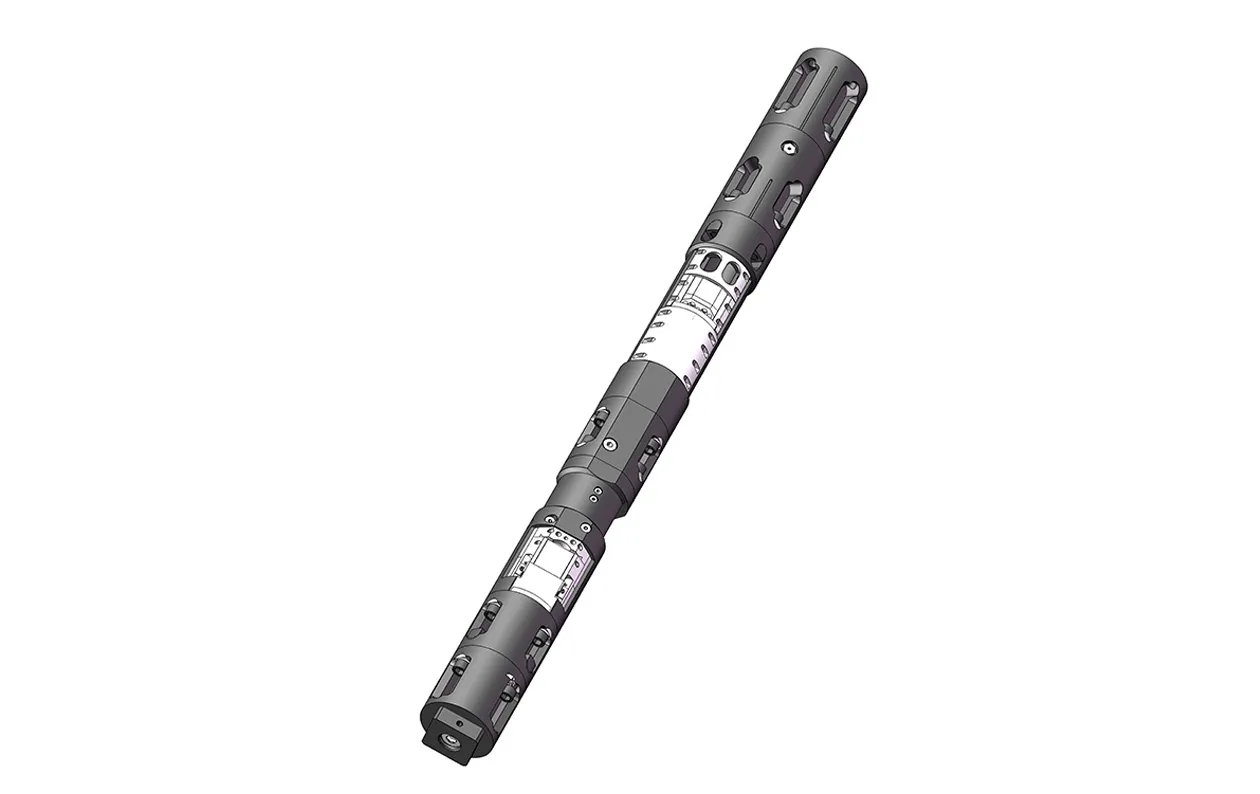

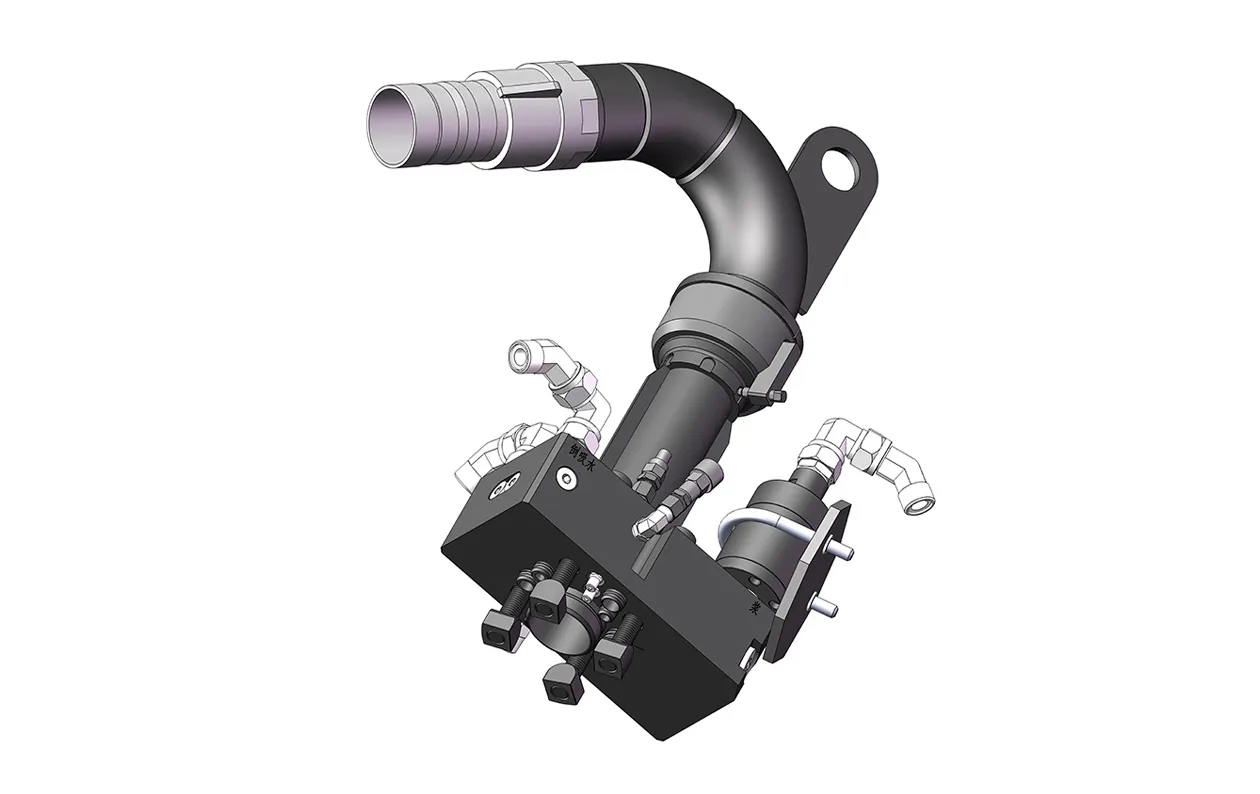

MJS drilling tools are the preferred equipment for foundation reinforcement. Featuring high torque, high speed and strong power, they are suitable for sandy gravel and other hole-collapsing prone formations. Stable hole forming is achieved without a DTH hammer under high water content conditions.With a convenient and efficient structural design, drill replacement via the hydraulic chuck requires no frequent joint changes. The enhanced jet grouting tool allows pilot-hole-free construction. The orifice guide device ensures construction accuracy and reduces tool wear.It enables all-directional construction (vertical, horizontal and inclined), adapts to various soft foundations and complex scenarios, and meets diverse engineering needs for both foundation reinforcement and waterproof curtain strengthening.

{Omni-directional construction (vertical, horizontal, inclined)}
{Low environmental impact during construction}
{Variable reinforcement cross-section shapes.}
{Suitable for foundation reinforcement in soft soil layers such as cohesive soil and sandy soil.}
{Suitable for reinforcement of various soft foundations without ground construction conditions (horizontal and inclined construction).}

•Omni-directional construction (vertical, horizontal, inclined)
•Low environmental impact during construction
•Variable reinforcement cross-section shapes.
•Suitable for foundation reinforcement in soft soil layers such as cohesive soil and sandy soil.
•Suitable for reinforcement of various soft foundations without ground construction conditions (horizontal and inclined construction).

TECHNICAL SPECS

{Specs,[
Torque^≤3000N·M ,
Depth^≤50m,
Length^1500mm,
Rod OD^142mm,
Weight^87kg]}

{Channel,[
^Grout^Air^Back Suction^Cutting Water^Spare Port,
Pressure^≤40Mpa^≤ 1Mpa^≤ 20Mpa^≤ 15Mpa^≤ 20Mpa,
Flow^≤160L/min^≥4m³/min^≤40L/min^≤30L/min^≤40L/min]}

Specs

Torque	≤3000N·M
Depth	≤50m
Length	1500mm
Rod OD	142mm
Weight	87kg

Channel

	Grout	Air	Back Suction	Cutting Water	Spare Port
Pressure	≤40Mpa	≤ 1Mpa	≤ 20Mpa	≤ 15Mpa	≤ 20Mpa
Flow	≤160L/min	≥4m³/min	≤40L/min	≤30L/min	≤40L/min
