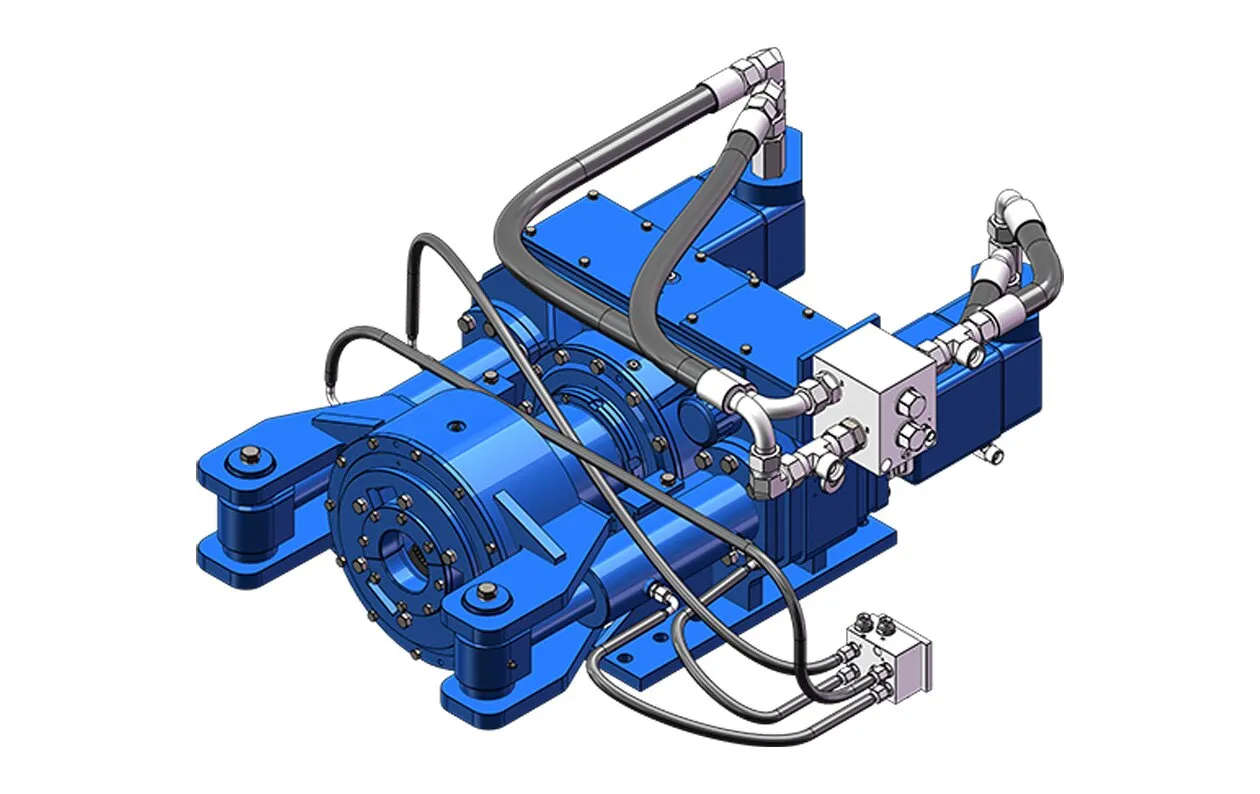

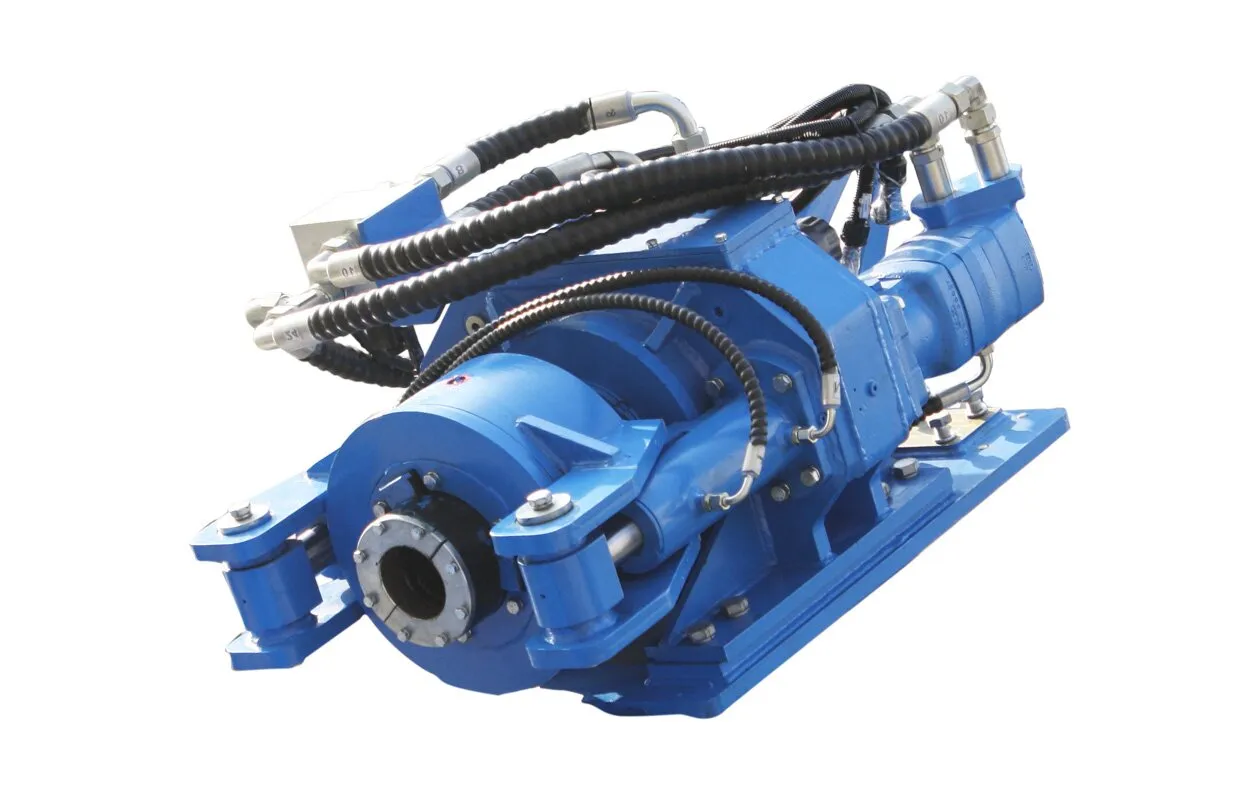

HT-100
HQ100 Rotary Power Head is a high-performance hydraulic rotary unit specially designed for high-pressure rotary jetting, soft foundation reinforcement, waterproof curtain and other engineering projects, which improves construction efficiency, reduces failure rates and lowers maintenance costs.
{Speed^85r/min}
{Slewing torque^5000N·m}
{Weight^590kg}
{Slewing torque^5000N·m}
{Weight^590kg}
Speed：85r/min
Slewing torque：5000N·m
Weight：590kg
APPLICATION SCENARIOS
3040
PRODUCT OVERVIEW
HT100 Rotary Power Head is a high-performance hydraulic rotary unit designed for high-pressure rotary jetting, soft foundation reinforcement, waterproof curtain and other engineering projects.Compatible with 89/114/127 rotary jet drilling tools, it supports free switching between series and parallel valves to easily achieve low-speed high torque or high-speed low torque.It improves construction efficiency, reduces failure rates and lowers maintenance costs, and can be quickly matched with various high-pressure rotary jet rigs to meet diverse working condition requirements.
{Compatible with 89/114/127 rotary jet drilling tools, ideal for high-pressure rotary jetting, soft foundation reinforcement, waterproof curtain and other projects.}
{One-key switch between low-speed high torque and high-speed low torque to adapt to different working conditions.}
{Operates stably in a wide temperature range, unaffected by climate variations on site.}
{Equipped with world-renowned cycloid motors for smooth power output, low failure rate and reliable long-term continuous construction.}
{Standardized interfaces supported by genuine spare parts and professional technical support, reducing maintenance costs.}
{One-key switch between low-speed high torque and high-speed low torque to adapt to different working conditions.}
{Operates stably in a wide temperature range, unaffected by climate variations on site.}
{Equipped with world-renowned cycloid motors for smooth power output, low failure rate and reliable long-term continuous construction.}
{Standardized interfaces supported by genuine spare parts and professional technical support, reducing maintenance costs.}
- •Compatible with 89/114/127 rotary jet drilling tools, ideal for high-pressure rotary jetting, soft foundation reinforcement, waterproof curtain and other projects.
- •One-key switch between low-speed high torque and high-speed low torque to adapt to different working conditions.
- •Operates stably in a wide temperature range, unaffected by climate variations on site.
- •Equipped with world-renowned cycloid motors for smooth power output, low failure rate and reliable long-term continuous construction.
- •Standardized interfaces supported by genuine spare parts and professional technical support, reducing maintenance costs.
TECHNICAL SPECS
{Power head parameters,[
Slewing torque ^10000/5000N·m,
Speed ^42/85r/min,
Rotating flow ^150L/min,
Rotating pressure ^20MPa,
modulus ^6,
Reduction ratio ^17:60 / 3.53,
Threaded output ^through-hole (Φ131),
Center height ^212mm,
Weight ^590kg,
Apply pressure ^34kN,
Enhancement ^66kN]}
Slewing torque ^10000/5000N·m,
Speed ^42/85r/min,
Rotating flow ^150L/min,
Rotating pressure ^20MPa,
modulus ^6,
Reduction ratio ^17:60 / 3.53,
Threaded output ^through-hole (Φ131),
Center height ^212mm,
Weight ^590kg,
Apply pressure ^34kN,
Enhancement ^66kN]}
| Slewing torque | 10000/5000N·m |
| Speed | 42/85r/min |
| Rotating flow | 150L/min |
| Rotating pressure | 20MPa |
| modulus | 6 |
| Reduction ratio | 17:60 / 3.53 |
| Threaded output | through-hole (Φ131) |
| Center height | 212mm |
| Weight | 590kg |
| Apply pressure | 34kN |
| Enhancement | 66kN |
